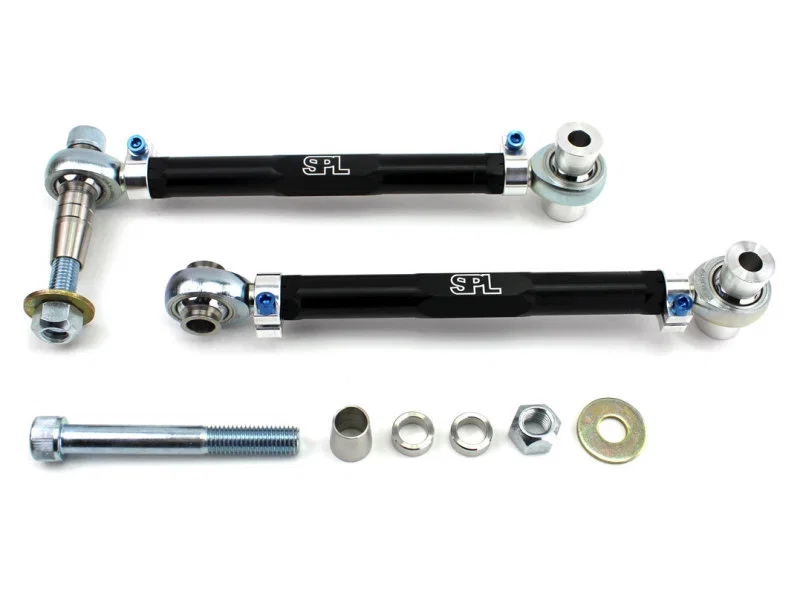

SPL Parts 06-15 Mazda Miata (NC) / 03-12 Mazda RX-8 Rear Upper Lateral (Camber) Links
Part # SPL RUA NCSKU SPLPSPL RUA NC
Set your vehicle above for a fit verdict. 2 vehicles listed below.
| Brand | SPL Parts |
|---|---|
| Part type | Suspension Control Arm |
- Proudly made, engineered, and assembled in the USA.
Description
NC Miata Rear Upper Arms (RUA) greatly increase the range of rear camber adjustment for high performance track/street applications and are a must for lowered cars to meet alignment requirements. The adjustment range provided by the eccentric washer on the OEM lower control arm is insufficient to get camber back into proper spec. We also provide stainless steel spacers to correct roll center on lowered cars. Black Anodized and gun drilled 2024 Aluminum alloy main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms, without compromising strength. FK Spherical Rod Ends eliminate the soft worn out bushings on the stock links to reduce alignment change in the rear suspension under hard cornering, acceleration and braking. They feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load. The PTFE liner is chemically bonded to the inner diameter of the race. The liner offers a very high load carrying capacity and has greatly increased dynamic wear characteristics.
Sold as a pair.
Made in the USA.
More from SPL Parts
| SPL RTA IS300 | $569.09 |
| SPL RTR IS300 | $640.41 |
| SPL RCA R50 | $569.09 |
| SPL FUA Z33 | $1,852.76 |
| SPL RLL Z33B | $711.72 |
| SPL RML Z33 | $1,710.13 |
| Year | Make | Model |
|---|---|---|
| 2006 - 2015 | Mazda | MX-5 Miata |
| 2004 - 2011 | Mazda | RX-8 |
