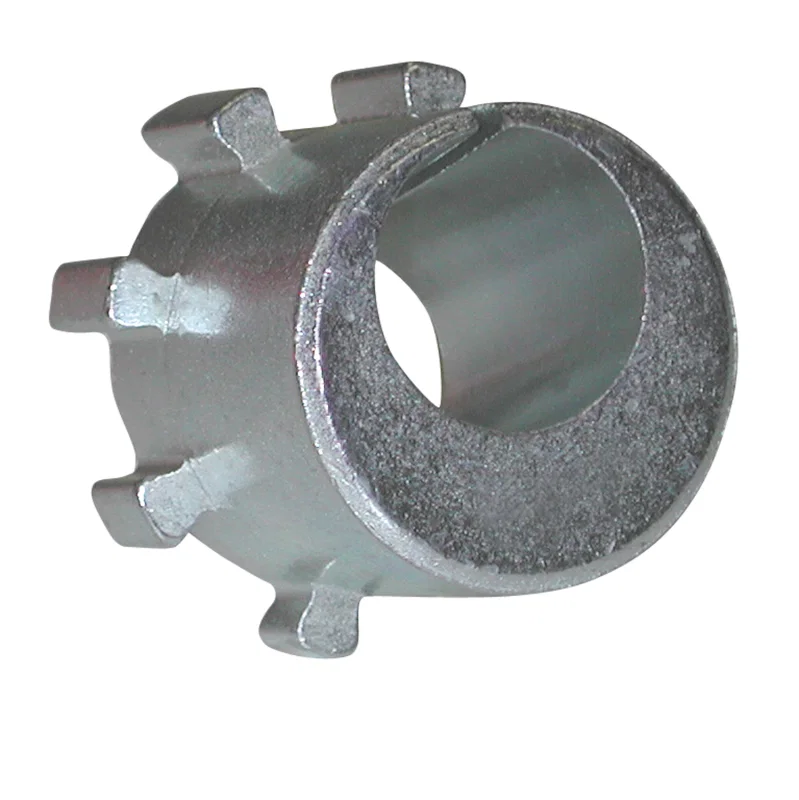

SPC Performance 2-1/4 deg. FORD Camber/Caster Sleeve
Part # 23111SKU SPCP23111
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | SPC Performance |
|---|---|
| Part type | Alignment Camber Kit |
| UPC / GTIN | 00082642231110 |
- Easily change caster / camber or both at the same time
- Front Adjustment Range: Camber/Caster ±2.25°
- Front Adjustment Range: Camber/Caster ±2.25˚
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Required: 1 per wheel
Description
This sleeve will easily change Camber and/or Caster 2.25˚ for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
More from SPC Performance
| 88325 | $69.50 |
| 25380 | $49.99 |
| 81520 | $59.01 |
| 67665 | $260.78 |
| 88920 | $378.91 |
| 67440 | $375.89 |
| Year | Make | Model |
|---|---|---|
| 1980 - 1996 | Ford | Bronco |
| 1980 - 1996 | Ford | F-150 |
| 1980 - 1998 | Ford | F-250 |
| 1997 | Ford | F-250 HD |
| 1980 - 1997 | Ford | F-350 |
