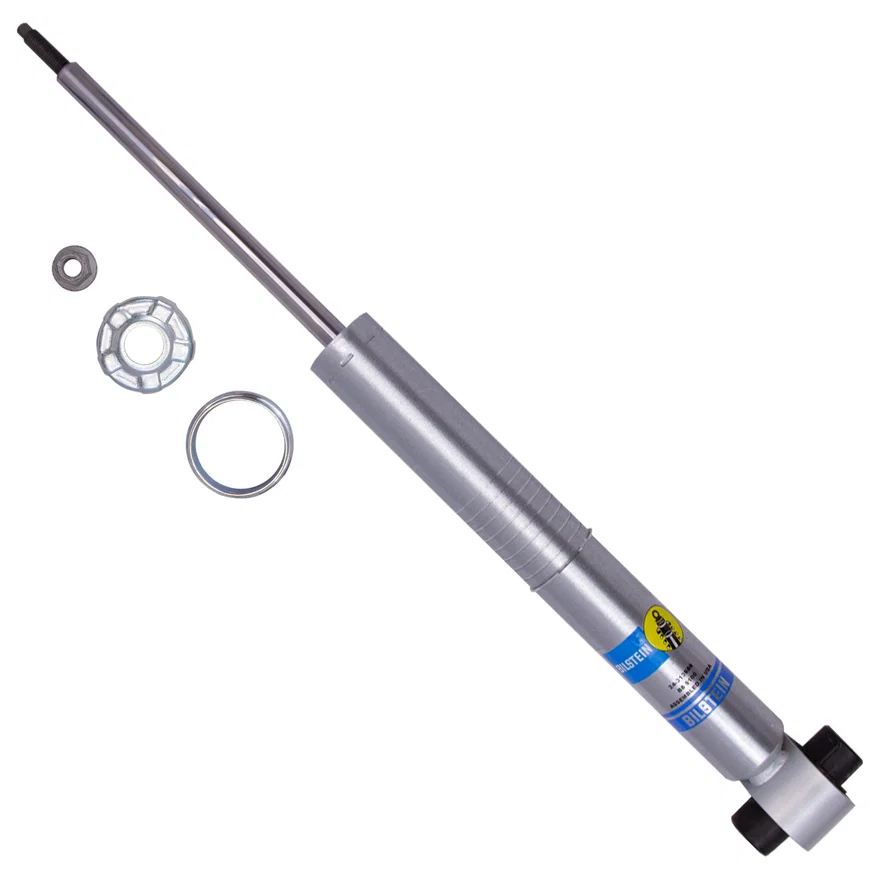

Bilstein B8 5100 (Ride Height Adjustable) Rear Suspension Shock Absorber for Ford Bronco
Part # 24-313988SKU BIL24-313988
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 17.11 |
| Collapsed Length (MM) | 434.6 |
| Extended Length (IN) | 25.56 |
| Extended Length (MM) | 649.3 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 20.2mm |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Max Travel (IN) | 8.45 |
| Spring Seat Included | No - Reuse OEM |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860875507 |
| Warranty | Lifetime warranty |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
More from Bilstein
| 24-317887 | $251.99 |
| 24-336895 | $251.99 |
| 24-187374 | $175.99 |
| 24-336994 | $251.99 |
| 33-238319 | $175.99 |
| 24-251778 | $175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak |
| 2022 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Everglades, Outer Banks, Wildtrak |
| 2023 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2024 | Ford | Bronco | Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2025 - 2026 | Ford | Bronco | Badlands, Base, Big Bend, Heritage Edition, Outer Banks |
