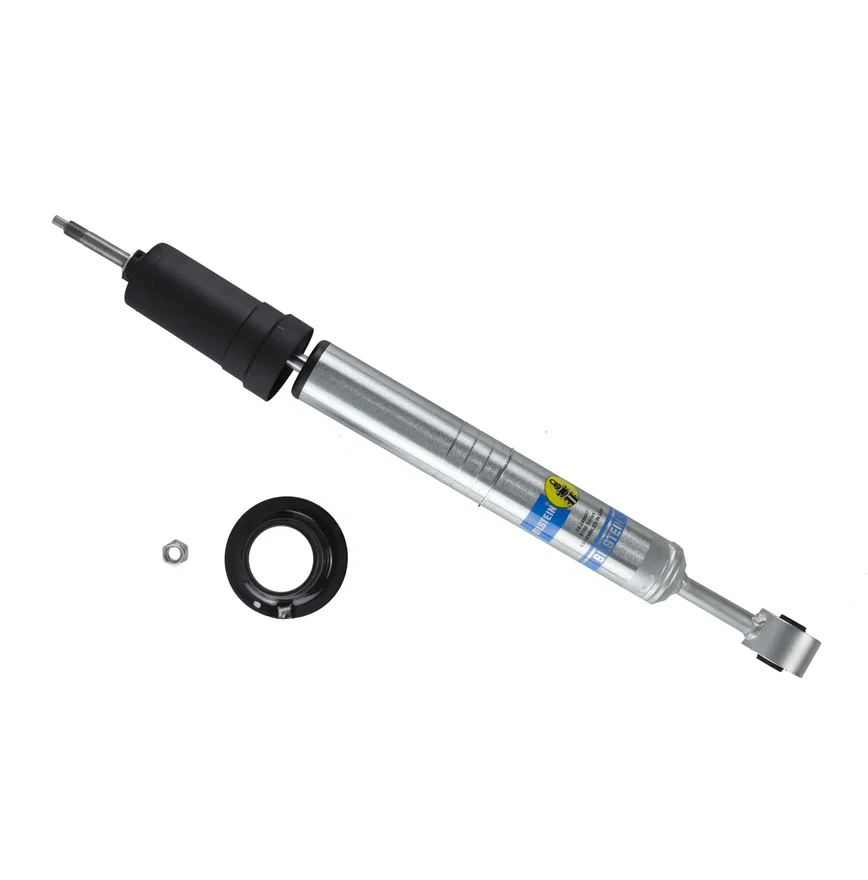

Bilstein B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Part # 24-245487SKU BIL24-245487
Universal fit
| Brand | Bilstein |
|---|---|
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | Black Straight |
| Collapsed Length (IN) | 17.03 |
| Collapsed Length (MM) | 432.5 |
| Extended Length (IN) | 22.59 |
| Extended Length (MM) | 573.7 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Max Travel (IN) | 5.55 |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860754574 |
| Warranty | Lifetime warranty |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
