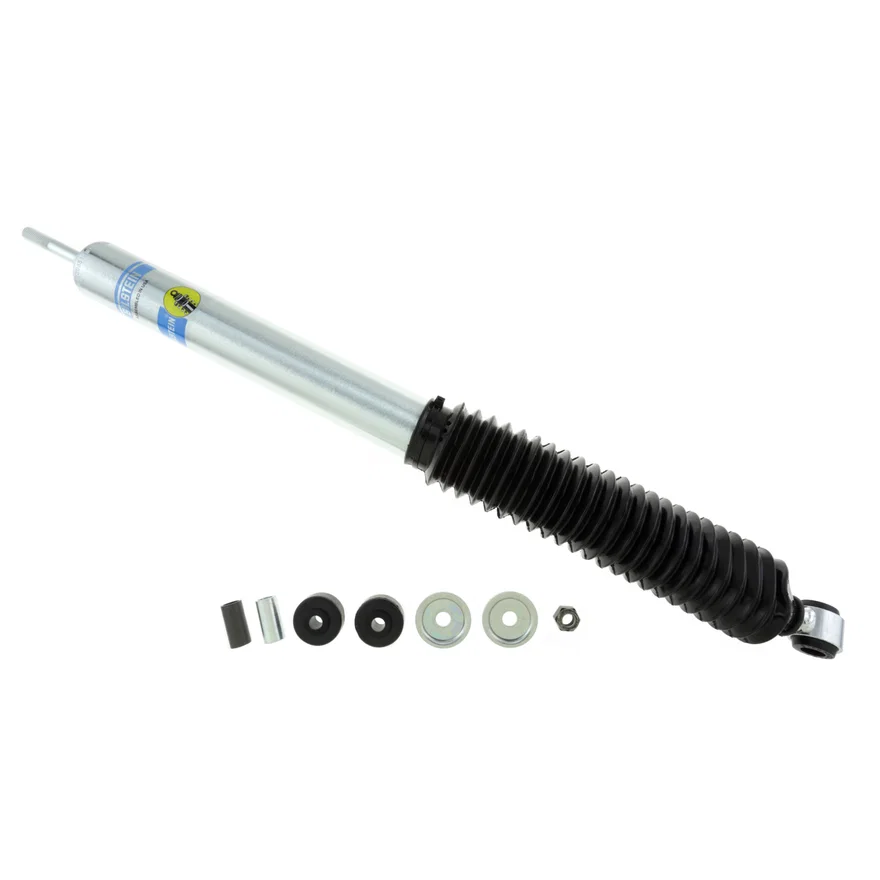

Bilstein B8 5125 - Suspension Shock Absorber
Part # 33-230351SKU BIL33-230351
Universal fit
| Brand | Bilstein |
|---|---|
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 16.13 |
| Collapsed Length (IN) Rounded | 16 |
| Collapsed Length (MM) | 409.8 |
| Compression @0.52m/s | 620 |
| Extended Length (IN) | 26.41 |
| Extended Length (IN) Rounded | 26 |
| Extended Length (MM) | 670.8 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 5/8in |
| Mount Type | Stem-to-Eye |
| Piston Diameter | 46mm |
| Rebound @0.52m/s | 2495 |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5125 |
| Spring Max Travel (IN) | 10.28 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860728049 |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Description
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
