Part # 25-325102
| Brand | Bilstein |
|---|---|
| Position | Rear Left |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 15.69 |
| Collapsed Length (MM) | 398.5 |
| Extended Length (IN) | 25.75 |
| Extended Length (MM) | 654.0 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Piston Diameter | 46mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Spring Max Travel (IN) | 10.06 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860894140 |

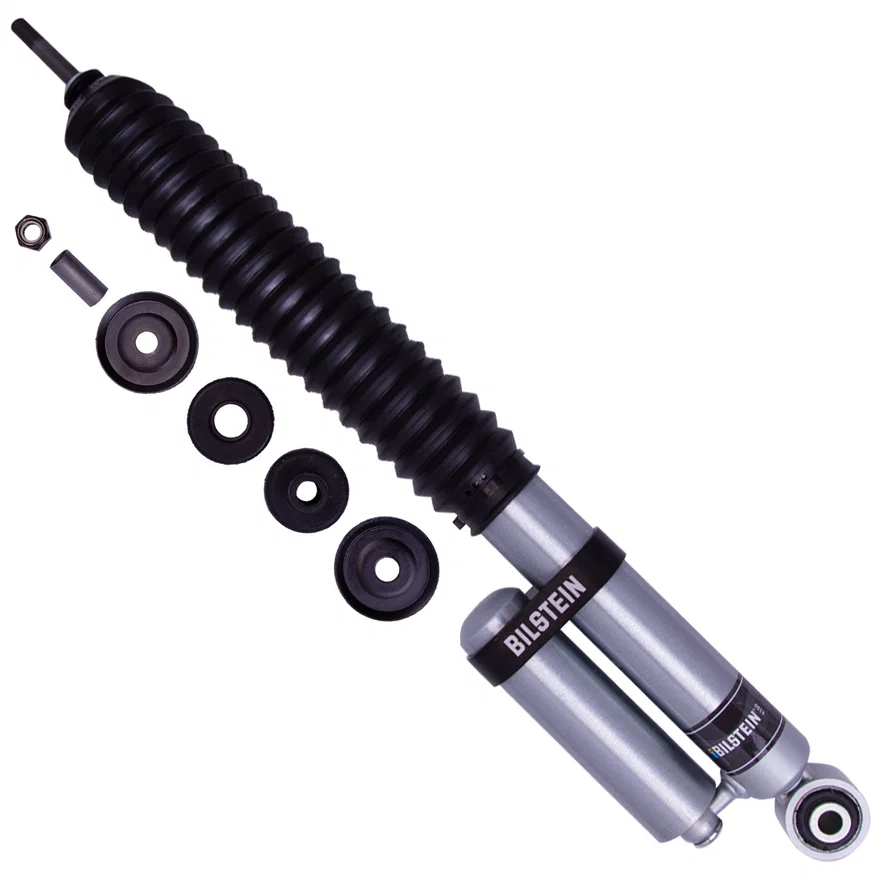

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019 - 2020 | Ram | 1500 | Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman |
| 2021 | Ram | 1500 | Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman |
| 2022 - 2023 | Ram | 1500 | Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman |
| 2024 | Ram | 1500 | Big Horn, Laramie, Limited Longhorn, Lone Star, Tradesman |
| 2025 | Ram | 1500 | Big Horn, Laramie, Lone Star, Rebel, Tradesman, Tradesman HFE, Warlock |
| 2026 | Ram | 1500 | Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock |
