Part # 25-316957SKU BIL25-316957
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 15.51 |
| Collapsed Length (MM) | 394.0 |
| Extended Length (IN) | 26.01 |
| Extended Length (MM) | 660.7 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Piston Diameter | 46mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Spring Max Travel (IN) | 10.50 |
| Spring Seat Included | No |
| Upper Mount Type | Eye 14.1mm |
| UPC / GTIN | 00651860890289 |

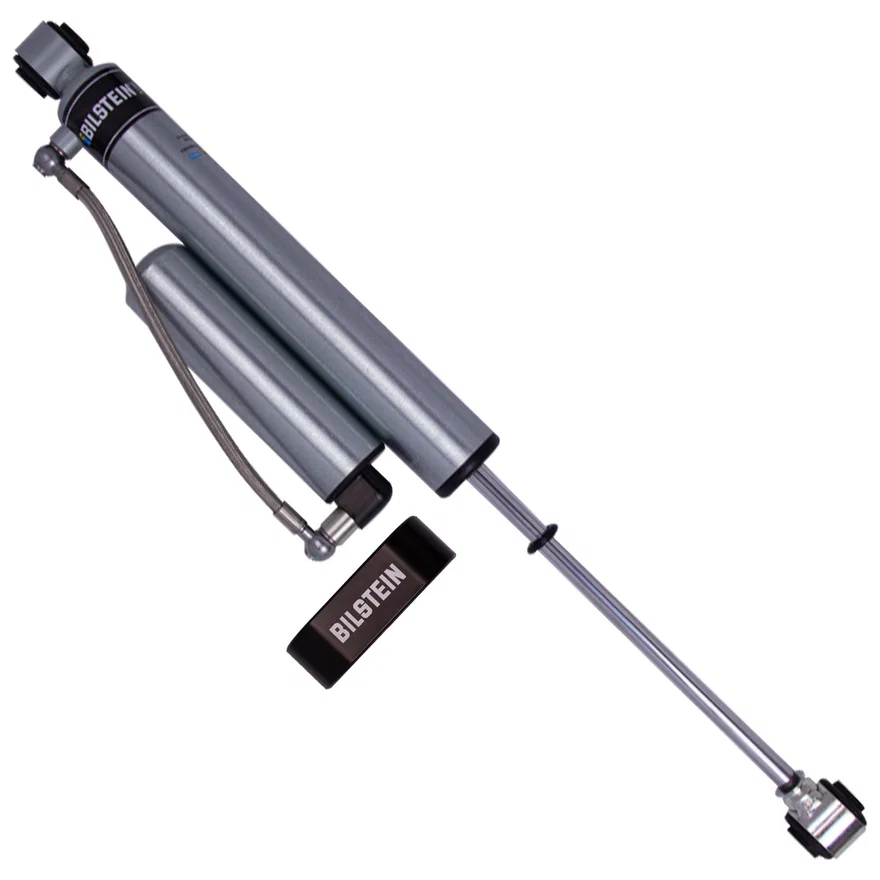

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
| 24-317887 | C$251.99 |
| 24-336895 | C$251.99 |
| 24-187374 | C$175.99 |
| 24-336994 | C$251.99 |
| 33-238319 | C$175.99 |
| 24-251778 | C$175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019 - 2026 | Chevrolet | Silverado 1500 | Custom, High Country, LT, LTZ, RST, WT |
| 2022 | Chevrolet | Silverado 1500 LTD | Custom, High Country, LT, LTZ, RST, WT |
| 2019 - 2021 | GMC | Sierra 1500 | Base, Elevation, SLE, SLT |
| 2022 - 2026 | GMC | Sierra 1500 | Elevation, Pro, SLE, SLT |
| 2022 | GMC | Sierra 1500 Limited | Elevation, Pro, SLE, SLT |
