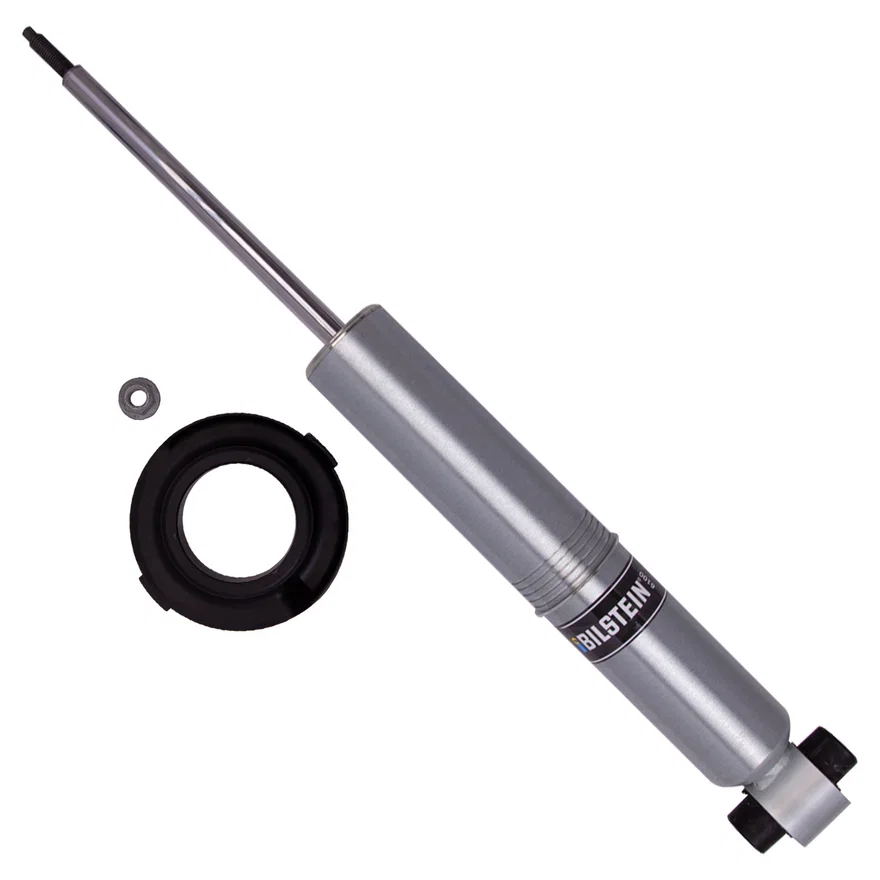

Bilstein B8 6100 (Ride Height Adjustable) Rear Suspension Shock Absorber for Ford Bronco
Part # 24-325578SKU BIL24-325578
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 17.11 |
| Collapsed Length (MM) | 434.6 |
| Extended Length (IN) | 25.56 |
| Extended Length (MM) | 649.3 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 20.2mm |
| Piston Diameter | 60mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6100 (Ride Height Adjustable) |
| Spring Max Travel (IN) | 8.45 |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860895178 |
| Warranty | Lifetime warranty |
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Description
Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
More from Bilstein
| 24-317887 | $251.99 |
| 24-336895 | $251.99 |
| 24-187374 | $175.99 |
| 24-336994 | $251.99 |
| 33-238319 | $175.99 |
| 24-251778 | $175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak |
| 2022 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Outer Banks, Wildtrak |
| 2023 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2024 | Ford | Bronco | Badlands, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2025 - 2026 | Ford | Bronco | Badlands, Base |
