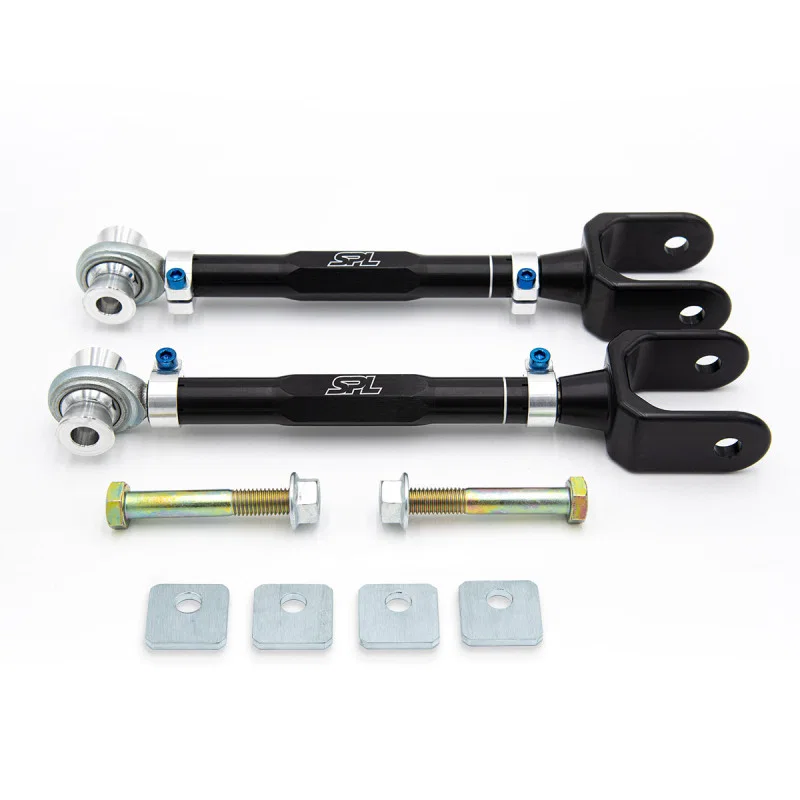

SPL Parts 2022+ Hyundai Elantra N Adjustable Rear Toe Links w/ Eccentric Lockout

SPL rear toe arms provide a large range of adjustment to properly correct the rear toe angle and increase the vehicle's overall stability by reducing unwanted toe angle shift from bushing deflection, especially with high cornering or braking loads and over bumps. The result is better handling, driving feel, and improved tire life.

Benefits

Large Toe Adjustment Range

Improved Tire Wear, Stability, and Handling

On-Car Adjustable with No Jam Nuts

Lightweight, High Strength Construction

Maintenance-Free, US Made, PTFE-Lined FK Rod Ends

Fixes Slipping Issue with OEM Eccentrics

Eccentric Lockout Kit Included

Eccentric bolts are prone to slipping with increased cornering loads. To solve this our toe eccentric lockout kit is included in this toe arm kit (RTAEL), which replaces the OEM Hyundai eccentric bolts with lockplates and non-eccentric bolts to lock down your alignment.

Easy, On-Car Adjustments

The anodized 2024-T351 aluminum arm uses opposing thread patterns (RH and LH) to allow you to adjust the toe while it is still installed. Simply loosen the aluminum clamps with a 5/32" hex key, elongate or shorten the arm by turning, then tighten the titanium cap screws. That's it, no need for fumbling wrenches trying to tighten a jam nut while you keep the arm the exact same length.

Materials

2024-T351 aluminum hollow arm (anodized black)

6061-T6 aluminum clamps

6061-T6 aluminum clevis

Titanium 1/4-20 socket head bolts (anodized blue)

FK PTFE-lined rod ends (F1 spec, self-cleaning)

Suitable for all uses, from daily driver to race car.
