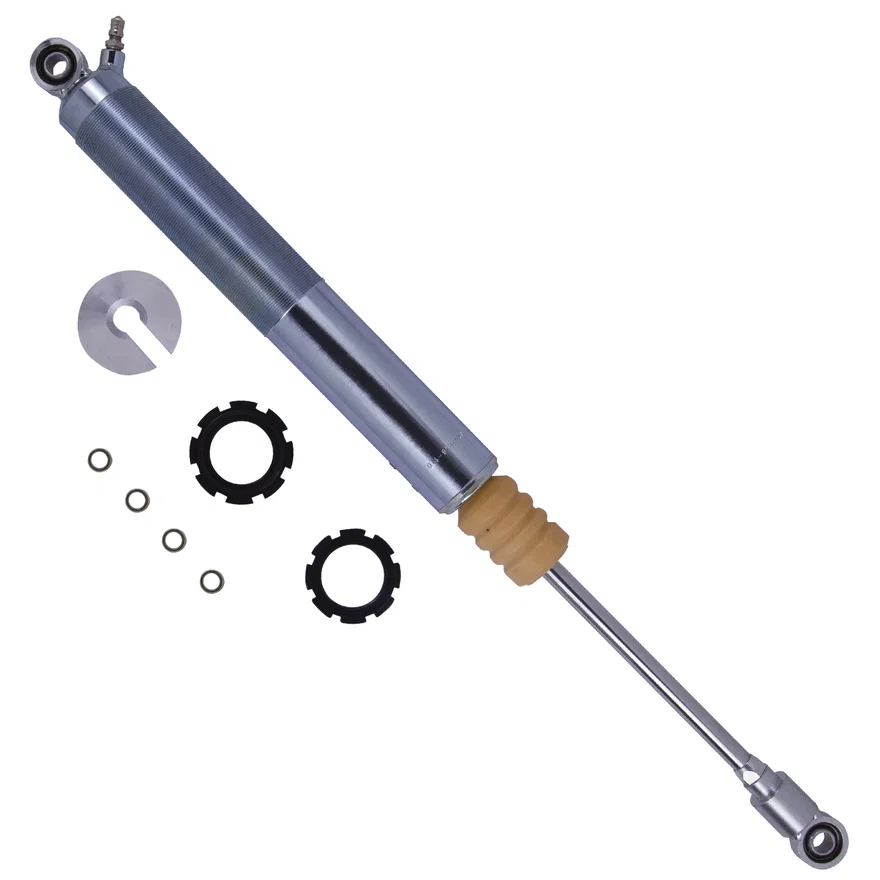

Bilstein M 7100 (Coilover) - Suspension Shock Absorber
Part # B46-1103S
Universal fit
| Brand | Bilstein |
|---|---|
| Body Design | Threaded Body (Coilover) |
| Collapsed Length (IN) | 17.44 |
| Collapsed Length (IN) Rounded | 17 |
| Collapsed Length (MM) | 443.0 |
| Compression @0.52m/s | 1000 |
| Extended Length (IN) | 26.65 |
| Extended Length (IN) Rounded | 27 |
| Extended Length (MM) | 676.9 |
| Finish | Nickel Plated with Clear Powder Coat |
| Internal Design | Monotube |
| Lower Mount Type | 1/2in Heim |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 46mm |
| Rebound @0.52m/s | 2550 |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 (Coilover) |
| Spring Hardware | Single Rate (2.5in) |
| Spring Max Travel (IN) | 9.21 |
| Spring Seat Included | Yes |
| Upper Mount Type | 1/2in Heim |
| UPC / GTIN | 00790832512528 |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Description
Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
