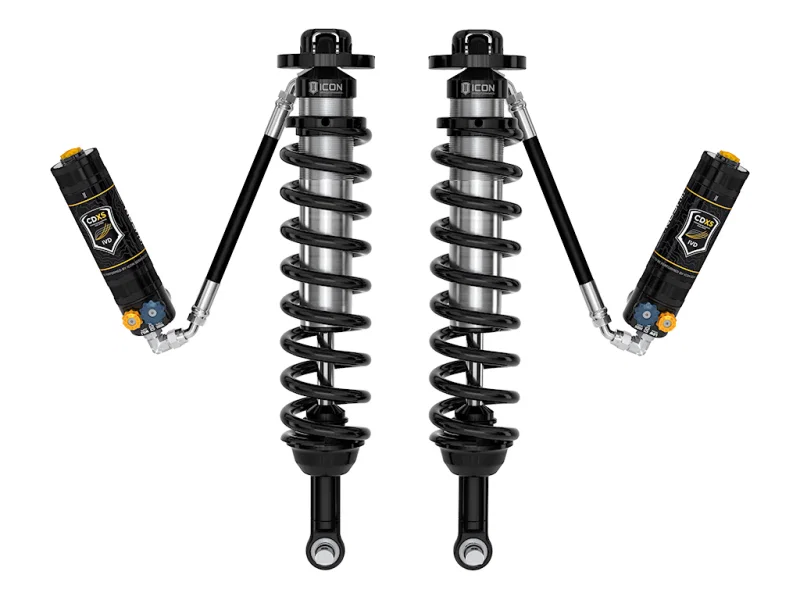

ICON 21-23 Ford Bronco 2.5in VS RR Coilover Kit - Front

Part # 48700XSKU ICON48700X

Set your vehicle above for a fit verdict. 2 vehicles listed below.

Specifications
BrandICON
Part typeCoilover
UPC / GTIN00840103431383
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • Increased wheel travel (up to 11.5”) and ride quality over stock
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • 6061 Aircraft grade aluminum CNC machined components
  • High strength alloy CNC machined lower bar pin
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs

Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDXS are an incredible upgrade for the front end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Fits these vehicles 2

YearMakeModel
2021 - 2023FordBronco
2025 - 2026FordBronco
