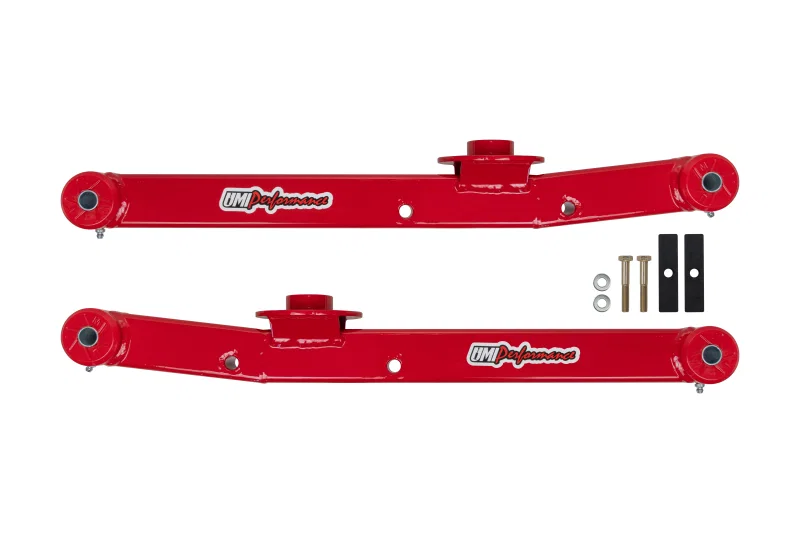

UMI Performance 65-70 GM B-Body Rear Lower Control Arms/Trailing Arms for Chevrolet

Part # 3655-RSKU UMIP3655-R

Set your vehicle above for a fit verdict. 4 vehicles listed below.

Specifications
BrandUMI Performance
  • Optional hardware kit available for installation of lower control arms (Grade 8 hardware included)
  • Reduces bushing deflection for reduced body roll and increased traction
  • Includes spring perches and clips for factory or lowering springs
  • Manufactured with high-quality greaseable polyurethane bushings
  • Direct bolt-in replacement for factory stamped control arms
  • Constructed with 1/8" wall thickness USA rectangular tubing
  • Features DOM bushing holders and reinforced sway bar holes
  • Improves ride quality and vehicle performance
  • Designed and manufactured in USA

Description

Whether your classic Chevrolet B-body is a restoration project, street car or drag car the UMI control arms will be an excellent upgrade. These new manufactured boxed control arms are a direct bolt in designed to replace the factory stamped control arms. Over time factory control arms rust which can weaken them while the factory bushings dry rot, harden and crack decreasing the ride quality and vehicle performance. This new control arm setup from UMI is assembled with high quality greaseable polyurethane bushings which improve ride quality and overall vehicle performance. Polyurethane bushings reduce bushing deflection found with factory rubber bushings, polyurethane bushings can help to reduce body roll and increase traction. The construction of the control arms features 1/8" wall thickness USA rectangular tubing with DOM bushing holders and reinforced sway bar holes. UMI’s new boxed control arms feature spring perches and clips to except the factory spring or lowering springs. Designed and manufactured with pride in Philipsburg, PA - USA.

Fits these vehicles 4

YearMakeModel
1965 - 1970ChevroletBel Air
1965 - 1970ChevroletBiscayne
1966 - 1970ChevroletCaprice
1965 - 1970ChevroletImpala
