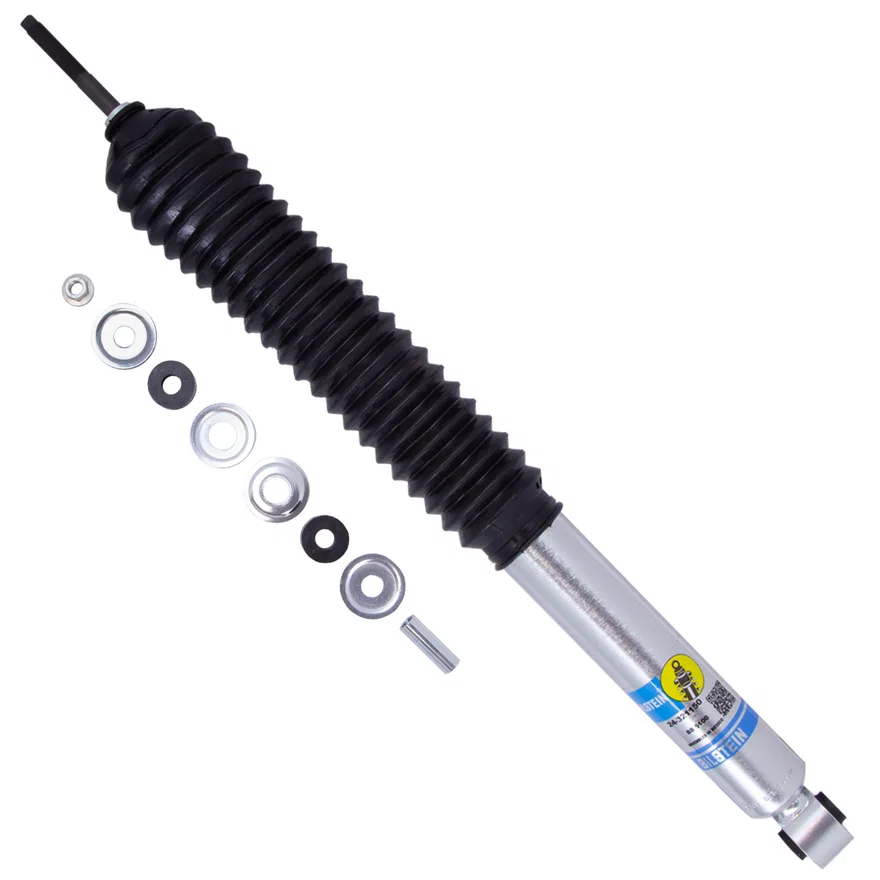

Bilstein B8 5100 Rear Suspension Shock Absorber for Toyota Tundra
Part # 24-321150SKU BIL24-321150
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 15.33 |
| Collapsed Length (MM) | 389.5 |
| Extended Length (IN) | 24.80 |
| Extended Length (MM) | 630.0 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.4mm |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Spring Max Travel (IN) | 9.47 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860877723 |
| Warranty | Lifetime warranty |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Description
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assu re optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
More from Bilstein
| 24-317887 | C$251.99 |
| 24-336895 | C$251.99 |
| 24-187374 | C$175.99 |
| 24-336994 | C$251.99 |
| 33-238319 | C$175.99 |
| 24-251778 | C$175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2009 | Toyota | Tundra | Base, Limited, SR5 |
| 2010 - 2011 | Toyota | Tundra | Base, Limited, Platinum, SR5 |
| 2012 - 2013 | Toyota | Tundra | Base, Limited, Platinum |
| 2014 - 2020 | Toyota | Tundra | 1794 Edition, Limited, Platinum, SR, SR5 |
| 2021 | Toyota | Tundra | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail |
