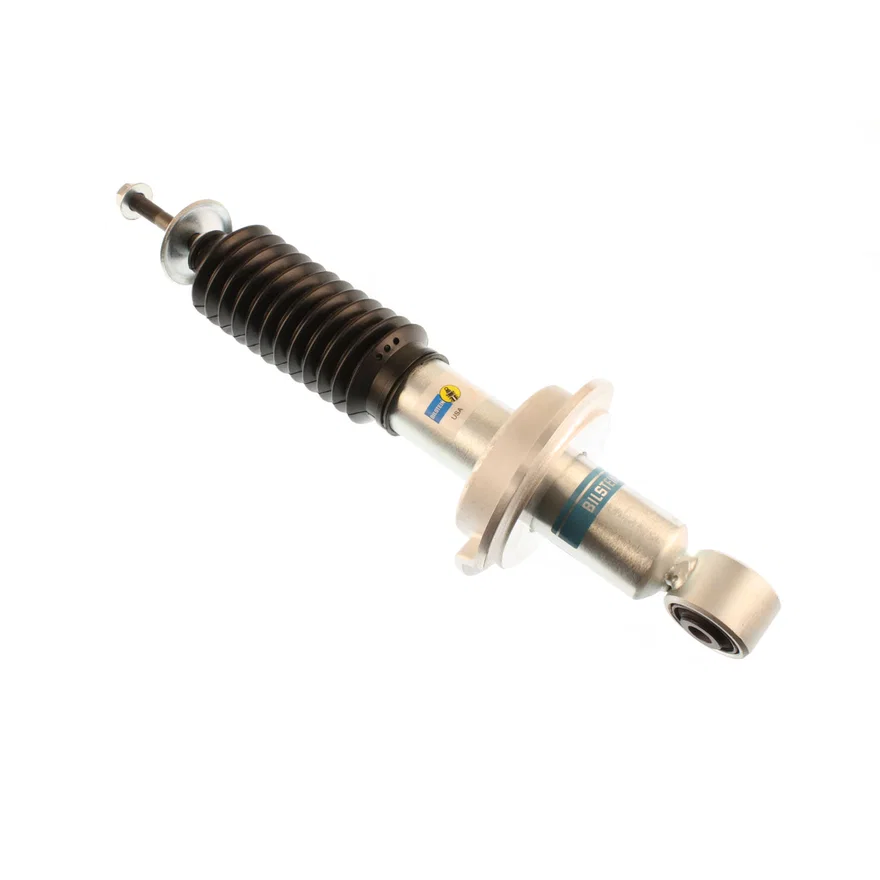

Bilstein B8 5100 (Ride Height Adjustable) Front Suspension Shock Absorber
Part # 24-197649SKU BIL24-197649
Set your vehicle above for a fit verdict. 9 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Position | Front |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 11.19 |
| Collapsed Length (MM) | 284.2 |
| Extended Length (IN) | 15.43 |
| Extended Length (MM) | 392.0 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.2mm |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Max Travel (IN) | 4.24 |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860681214 |
| Warranty | Lifetime warranty |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
More from Bilstein
| 24-317887 | $251.99 |
| 24-336895 | $251.99 |
| 24-187374 | $175.99 |
| 24-336994 | $251.99 |
| 33-238319 | $175.99 |
| 24-251778 | $175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2010 | INFINITI | QX56 | Base |
| 2005 - 2006 | Nissan | Armada | LE, SE, SE Off-Road |
| 2007 - 2009 | Nissan | Armada | LE, SE |
| 2010 | Nissan | Armada | Platinum, SE, Titanium |
| 2011 - 2015 | Nissan | Armada | Platinum, SL, SV |
| 2004 | Nissan | Pathfinder Armada | LE, SE |
| 2004 - 2007 | Nissan | TITAN | LE, SE, XE |
| 2008 - 2010 | Nissan | TITAN | LE, PRO-4X, SE, XE |
| 2011 - 2015 | Nissan | TITAN | PRO-4X, S, SL, SV |
