Bilstein B8 6112 Rear Suspension Kit for Ford Bronco
Part # 47-314009SKU BIL47-314009
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Kit |
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Internal Design | Monotube |
| Piston Diameter | 60mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6112 |
| Spring Seat Included | Yes |
| UPC / GTIN | 00651860900599 |
| Warranty | Lifetime warranty |
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Description

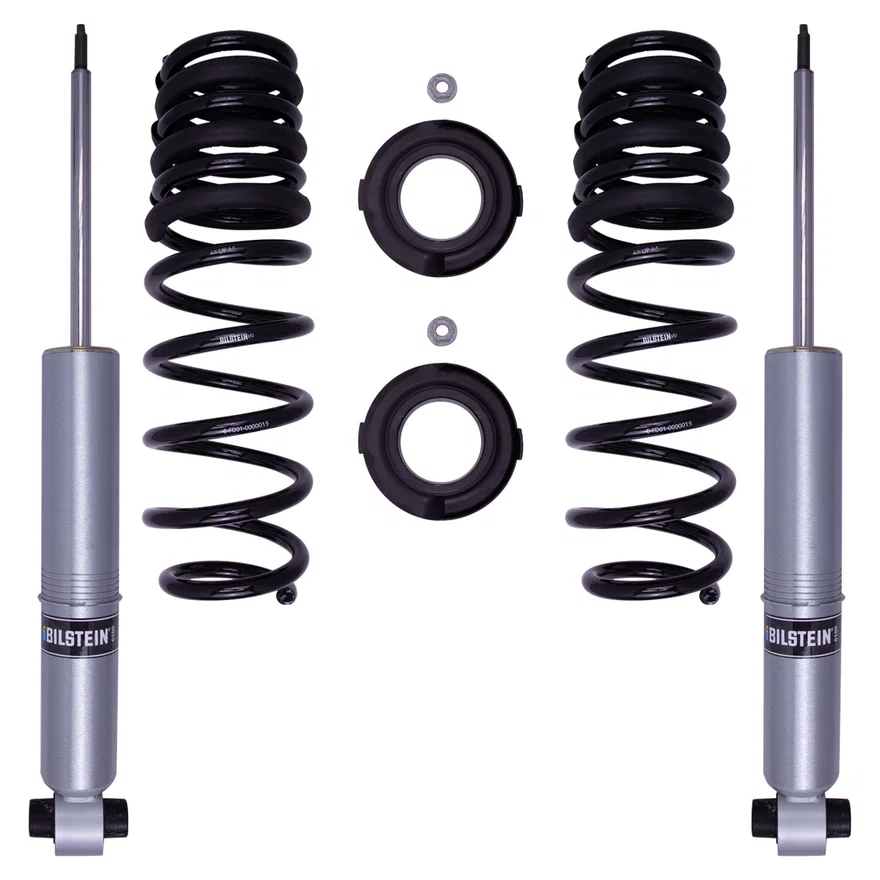

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
More from Bilstein
| 47-269064 | $1,621.99 |
| 47-309975 | $1,336.99 |
| 47-323841 | $1,336.99 |
| 47-310995 | $1,336.99 |
| 47-269095 | $1,621.99 |
| 47-310025 | $1,336.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak |
| 2022 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Outer Banks, Wildtrak |
| 2023 | Ford | Bronco | Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2024 | Ford | Bronco | Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks |
| 2025 - 2026 | Ford | Bronco | Badlands, Base, Big Bend, Heritage Edition, Outer Banks |
