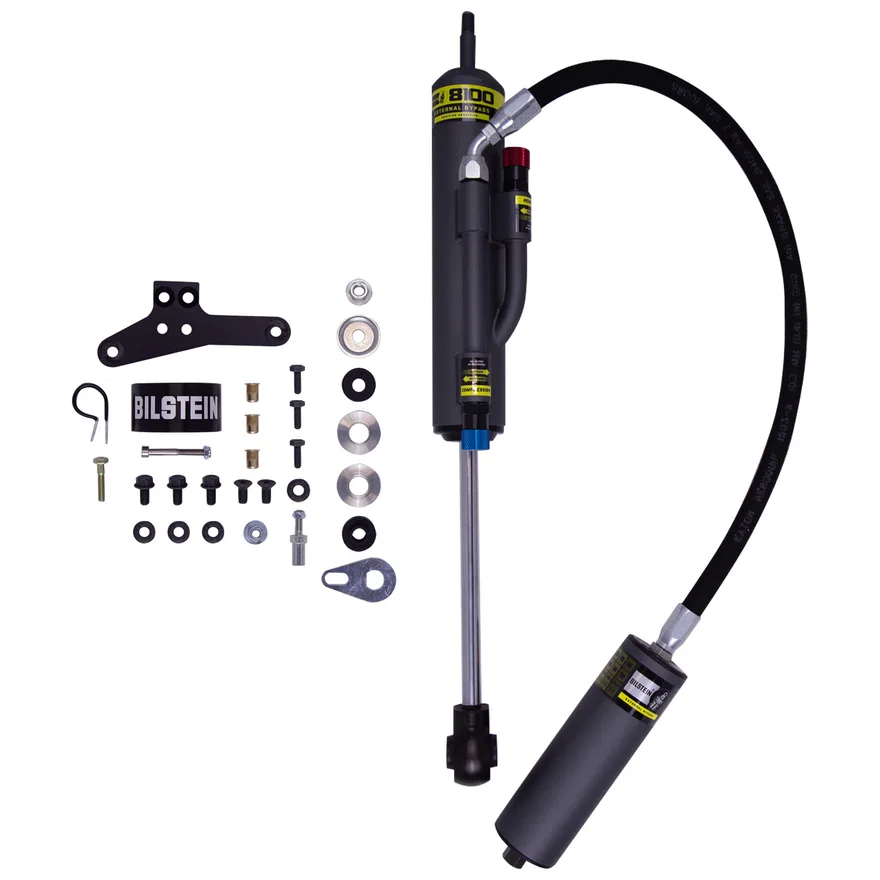

Bilstein B8 8100 (Bypass) Rear Left Suspension Shock Absorber
Part # 25-326369SKU BIL25-326369
Set your vehicle above for a fit verdict. 13 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Position | Rear Left |
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Body Design | Bypass Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 14.72 |
| Collapsed Length (MM) | 374.0 |
| Extended Length (IN) | 24.09 |
| Extended Length (MM) | 612.0 |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.2mm |
| Piston Diameter | 60mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860918334 |
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Description
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir e xit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
More from Bilstein
| 24-317887 | C$251.99 |
| 24-336895 | C$251.99 |
| 24-187374 | C$175.99 |
| 24-336994 | C$251.99 |
| 33-238319 | C$175.99 |
| 24-251778 | C$175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 - 2013 | Lexus | GX460 | Base, Premium |
| 2014 - 2022 | Lexus | GX460 | Base, Luxury, Premium |
| 2023 | Lexus | GX460 | Base, Black Line Edition, Luxury, Premium |
| 2003 - 2009 | Lexus | GX470 | Base |
| 2003 - 2009 | Toyota | 4Runner | Limited, SR5 |
| 2010 - 2014 | Toyota | 4Runner | SR5, Trail |
| 2015 - 2016 | Toyota | 4Runner | SR5, TRD Pro, Trail |
| 2017 | Toyota | 4Runner | SR5, TRD Off-Road, TRD Pro |
| 2018 - 2019 | Toyota | 4Runner | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro |
| 2020 | Toyota | 4Runner | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro, Venture |
| 2021 - 2022 | Toyota | 4Runner | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro, Trail, Venture |
| 2023 | Toyota | 4Runner | 40th Anniversary Edition, SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro |
| 2024 | Toyota | 4Runner | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro |
