SPL Parts Subaru BRZ / 15+ WRX / Toyota 86/GR86 Rear Spherical Knuckle Bushing
Part # SPL RKB FRSSKU SPLPSPL RKB FRS
Set your vehicle above for a fit verdict. 7 vehicles listed below.
| Brand | SPL Parts |
|---|---|
| Part type | Suspension Control Arm Bushing |
- Proudly made, engineered, and assembled in the USA.
Description

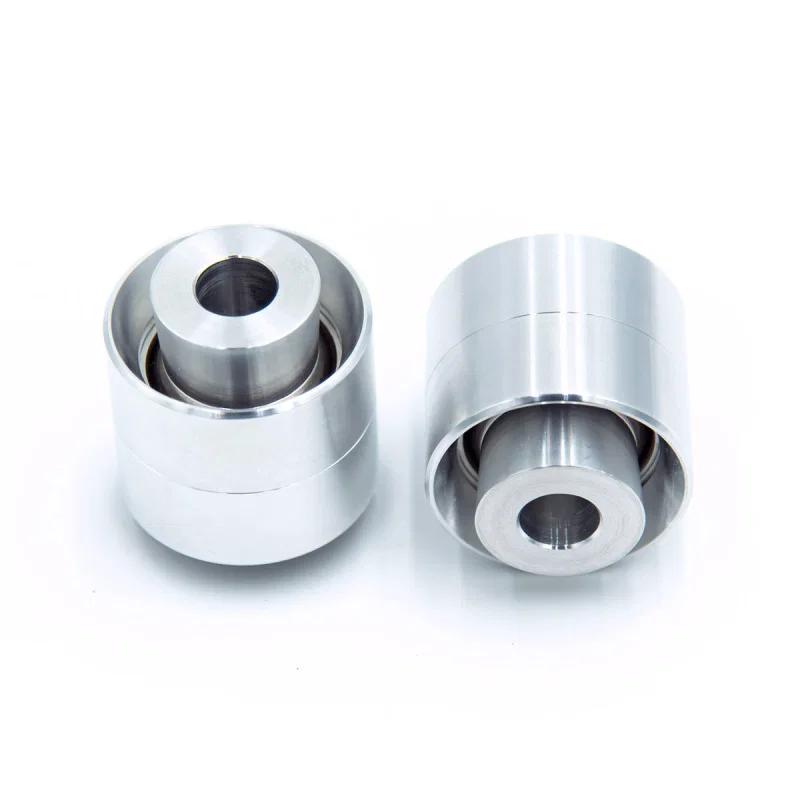

The SPL rear knuckle bushings replace the rubber factory knuckle bushing with a low friction PTFE-lined spherical bearing. Replacing the OEM rubber bushing eliminates deflection under heavy acceleration and braking loads that leads to unwanted geometry changes, and prevents binding by allowing the knuckle to smoothly articulate. The reduced deflection also translates to improved driver feedback from the tire and better overall response. We use the largest possible FK bearing, to increase longevity and reduce NVH, mounted in a 6061-T6 aluminum housing precision cut with +/- .001" tolerance to insure proper fitment.
Benefits
Lightweight: 0.674 lbs (306g) / 0.337 lbs (153g) per Side
Improves Throttle and Braking Response
Reduced Wheel Hop
Maintenance-Free, US Made, PTFE-Lined FK Bearings
Materials
6061-T6 Aluminum Bearing Shells
Steel PTFE-lined FK Spherical Bearings
More from SPL Parts
| SPL RKS Z33 | $326.62 |
| SPL CRB Z33 | $355.15 |
| SPL FLBI Z33 | $241.04 |
| SPL FLBS Z33 | $241.04 |
| SPL RKB Z33 | $1,139.61 |
| SPL RMLB Z33 | $283.83 |
| Year | Make | Model |
|---|---|---|
| 2013 - 2016 | Scion | FR-S |
| 2013 - 2020 | Subaru | BRZ |
| 2025 | Subaru | BRZ |
| 2015 - 2025 | Subaru | WRX |
| 2015 - 2021 | Subaru | WRX STI |
| 2017 - 2020 | Toyota | 86 |
| 2022 - 2026 | Toyota | GR86 |
