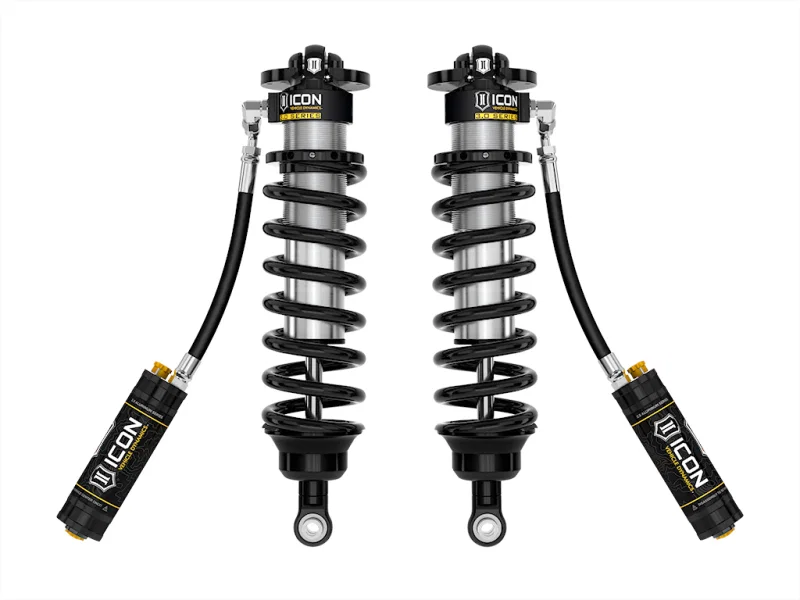

ICON 2022+ Toyota Tundra 3.0 Series VS RR CDCV Coilover Kit
Part # 58775CSKU ICON58775C
Set your vehicle above for a fit verdict. 2 vehicles listed below.
| Brand | ICON |
|---|---|
| Part type | Coilover |
| UPC / GTIN | 00840103414911 |
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- CNC machined 6061 aluminum components with a black anodized finish
- 7/8” diameter induction hardened, chrome plated shock shafts
- 40% increase in front wheel travel over stock
- Fully Rebuildable and Re-tunable
Description
3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
More from ICON
| 95000L | $2,517.83 |
| 95000R | $2,517.83 |
| 71607 | $741.60 |
| 58632 | $741.60 |
| 158504 | $185.35 |
| 71502-CB | $2,518.77 |
| Year | Make | Model |
|---|---|---|
| 2023 - 2026 | Toyota | Sequoia |
| 2022 - 2026 | Toyota | Tundra |
